Product details
SURE-FOOTED IN OR OUT OF THE CITY

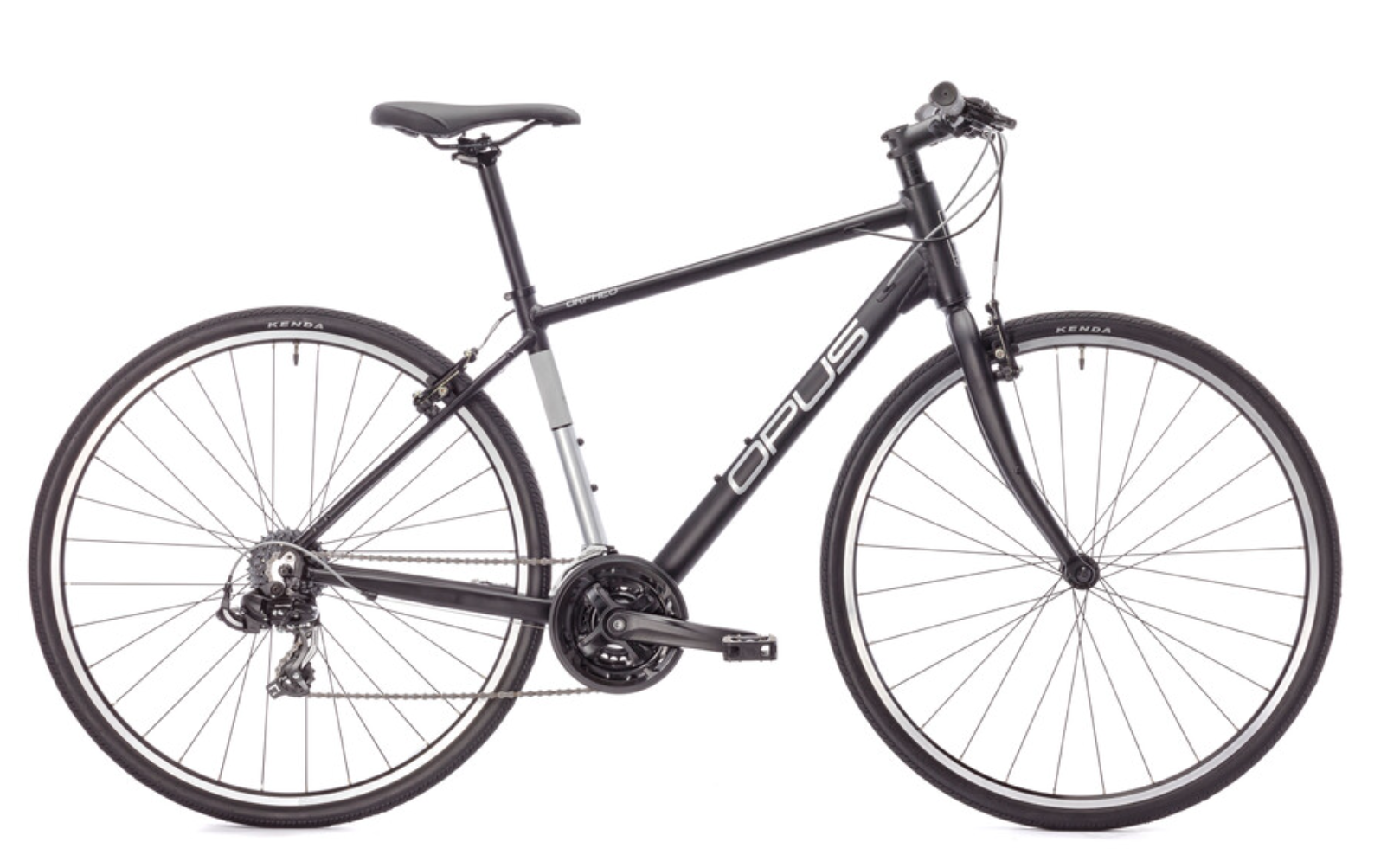

Meet our most affordable urban performance bike. The Orpheo 5 combines quality Shimano components, fast and versatile 35 mm tires and all the comforts of an easy-handling hybrid. Equally at home on a neighborhood jaunt, a country cruise or a high-intensity ride. On the Orpheo 5, every ride’s a total blast.
Features
- Sporty Progressive Geometry for performance and comfort
- Alloy frame
- Shimano 3x7 drivetrain
- V brakes
- Internal cable routing
Specifications
| Frame | Meta 10 aluminum |
| Fork | Steel 1 1/8 in |
| Sizes | XS-S-M-L-XL |
| Shifters | Shimano ST-EF500 3 x 7 |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Tourney |
| Brakes | Z Star RX-823DK V-brake |
| Brake Levers | Shimano |
| Crank | Prowheel TA-CM68 |
| Chainrings | 42-34-24 |
| Bottom Bracket | Neco cartridge |
| Cassette Cogs | Shimano 12-28 |
| Chain | KMC-Z7 |
| Headset | Neco H115 sealed semi- integrated |
| Handlebar | Alloy butted 12 mm rise |
| Stem | Promax |
| Grips/Tape | Velo ERGO dual density |
| Saddle | Opus City |
| Seatpost | Promax alloy 27.2 x 300 |
| Wheels/Rims | Weinmann ZAC 19 |
| Hubs | Joytech |
| Tires | Kenda Kwick Tendril 700 x 35 |
| Pedals | FPD NW-247 |
| Other | Front and rear-rack and fender ready |
Geometries
| SIZE | XS | S | M | L | XL |
| SIZE (CM) | 38 | 42 | 460 | 55 | 54 |
| RIDER (± 5CM) | 155 | 164 | 173 | 182 | 191 |
| RIDER (± 2") | 5’1” | 5’4.5” | 5’8” | 5’11.5” | 6'3" |
| SEAT TUBE | 380 | 420 | 460 | 500 | 540 |
| TOP TUBE | 529 | 547 | 568 | 589 | 611 |
| HEAD TUBE | 113 | 131 | 154 | 176 | 196 |
| HEAD ANGLE | 71 | 71.25 | 71.5 | 71.75 | 72 |
| SEAT ANGLE | 74.5 | 74 | 73.5 | 73 | 72.5 |
| CHAIN STAY | 435 | 440 | 445 | 445 | 450 |
| BB DROP | 75 | 75 | 72.5 | 70 | 72 |
| STACK | 540 | 560 | 580 | 600 | 620 |
| REACH | 379 | 387 | 397 | 407 | 416 |
| STAND OVER | 717 | 744 | 775 | 806 | 834 |
| BAR | 580 | 600 | 600 | 620 | 620 |
| STEM | 70 | 80 | 80 | 90 | 100 |
| CRANK | 170 | 170 | 175 | 175 | 175 |
