Product details
COMMUTING MADE FUN

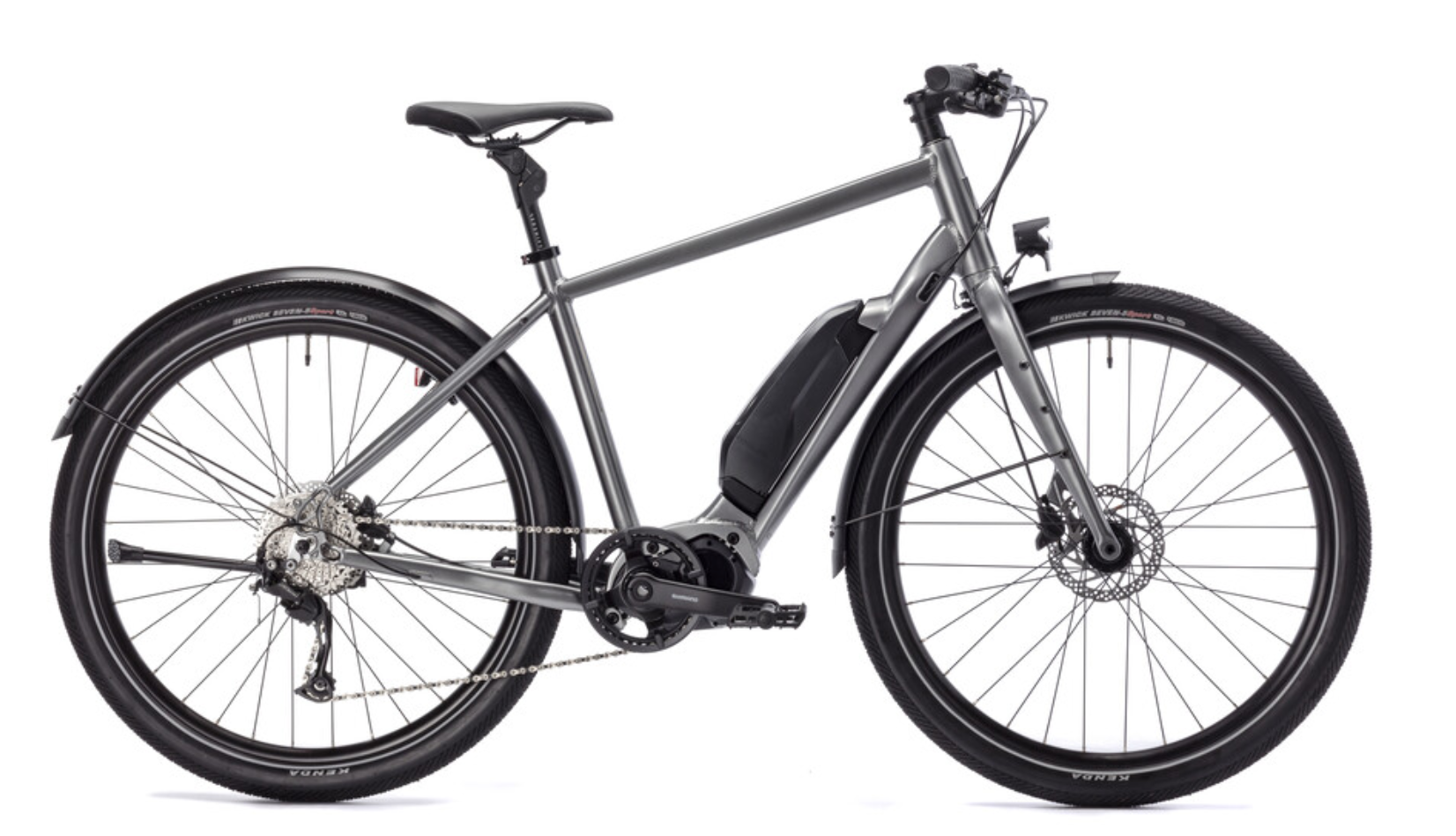

We just made your big city commute even more comfortable and fun. How? By keeping all that was great about the original E-Big City, but adding the more powerful Shimano E-6100 motor and a suspension seat post. The E-Big City+’s extra power gives you greater confidence and fun on every ride. Plus, its RedShift Shockstop Suspension Seatpost adds comfort. It adjusts to fit any rider and offers a full 35mm of travel. Result? You’ll feel like you’re floating over just about every bump or crack in the road. So get out there and have some fun on your next commute! Ride the E-Big City+.
Features
- Lighweight 6061 aluminum frame
- Lightweight 6061 aluminum Fork
- Shimano 1x9 drivetrain
- Shimano MT201 hydraulic disc brakes
- Shimano STePS E-6100 motor and E-8014 418Wh semi-integrated battery
Specifications
| Frame | Meta 30 aluminum |
| Fork | Aluminum tapered 1-1/2 to 1-1/8 in |
| Sizes | S-M-L |
| Shifters | Shimano Alivio 9 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Alivio 3100 Shadow |
| Brakes | Shimano BR-MT201 hydraulic disc |
| Brake Levers | Shimano BL-MT201 |
| Crank | Shimano STePS |
| Chainrings | 38 |
| Bottom Bracket | Shimano STePS E-6100 |
| Cassette Cogs | Shimano 11-36 |
| Chain | KMC E9S |
| Headset | FSA Orbit integrated sealed |
| Handlebar | Opus Bronze 25 mm rise |
| Stem | Opus Silver |
| Grips/Tape | Velo ergo dual density |
| Saddle | Opus E-City |
| Seatpost | Redshift Suspension Seatpost |
| Wheels/Rims | Weinnman U32 TL |
| Hubs | Formula/Shimano |
| Tires | Kenda Kwick Seven.5 27.5 x 2.4 |
| Pedals | FPD NW-247 |
| Other | Shimano STePS motor E-6100 250W 60Nm |
| Other | Shimano E-8014 418Wh 36V 11.6Ah battery |
| Other | SC-E5000 Switch with integrated display |
Geometries
| SIZE | S | M | L |
| SIZE (CM) | |||
| RIDER (± 5CM) | 155 | 165 | 178 |
| RIDER (± 2") | 5'1" | 5'5" | 5'10" |
| SEAT TUBE | 430 | 470 | 510 |
| TOP TUBE | 540 | 570 | 601 |
| HEAD TUBE | 160 | 180 | 200 |
| HEAD ANGLE | 71 | 71 | 71.5 |
| SEAT ANGLE | 74 | 73.5 | 73 |
| CHAIN STAY | 460 | 460 | 460 |
| BB DROP | 65 | 60 | 60 |
| STACK | 575 | 590 | 610 |
| REACH | 375 | 395 | 415 |
| STAND OVER | |||
| BAR | 620 | 620 | 620 |
| STEM | 70 | 70 | 80 |
| CRANK | 170 | 170 | 170 |
