Product details

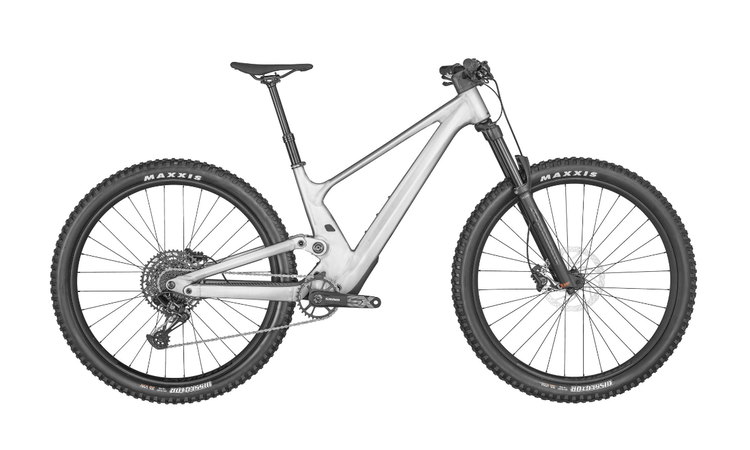

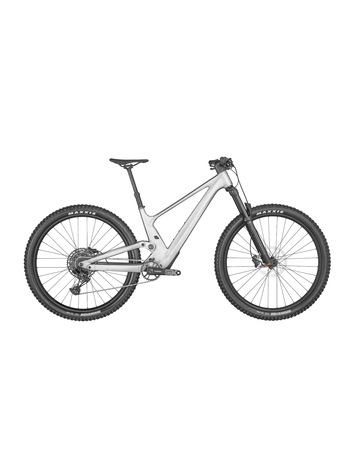

The Genius has always been our favorite bike. Smart suspension, smarter features, and the smartest design lead to an unbelievable trail bike that just can't get enough. The All-New Genius, any trail, any time.
FRAME
-
Genius Alloy 6061
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
FORK
Marzocchi Z2 Air Rail
3-Modes / 15x110mm QR axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 150mm travel -
REAR SHOCK
X-Fusion NUDE 5 RLX Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 150-100-Lockout / T185X55mm -
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
-
REAR DERAILLEUR
SRAM NX Eagle 12 Speed -
SHIFTERS
SRAM SX Eagle Trigger -
CRANKSET
SRAM SX Eagle DUB
55mm CL / 32T -
BB-SET
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
CHAIN
SRAM CN SX Eagle -
CASSETTE
SRAM SX-PG1210 / 11-50 T -
BRAKES
Shimano MT501 Disc -
ROTOR
Shimano SM-RT30 CL / 203/F and 180/R -
HANDLEBAR
Syncros Hixon 2.0 Alloy 6061 D.B.
12mm Rise / back sweep 8° / 780mm
Syncros Endurance lock-on grips -
H'STEM
Syncros AM 2.0
Syncros Cable Integration System
4° rise / 6061 Alloy / 31.8mm / 1 1/8" -
SEATPOST
Syncros Duncan Dropper Post
31.6mm / S size 130mm / M size 150mm / L & XLsize 170mm -
SEAT
Syncros Tofino 2.5 Regular -
HEADSET
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
HUB (FRONT)
Formula CL-811 / 15x110mm -
HUB (REAR)
Formula CL-148S / 12x148mm -
SPOKES
Stainless Black 15G / 1.8mm -
RIMS
Syncros X-30S / 32H / 30mm / Sleeve Joint -
FRONT TIRE
Maxxis Dissector / 60TPI Foldable
Tubeless Ready / EXO -
REAR TIRE
Maxxis Dissector / 60TPI Foldable
Tubeless Ready / EXO -
APPROX WEIGHTS IN KG
15.8 (with tubes) -
APPROX WEIGHTS IN LBS
34.83 (with tubes) -
MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
